PMC-512-A

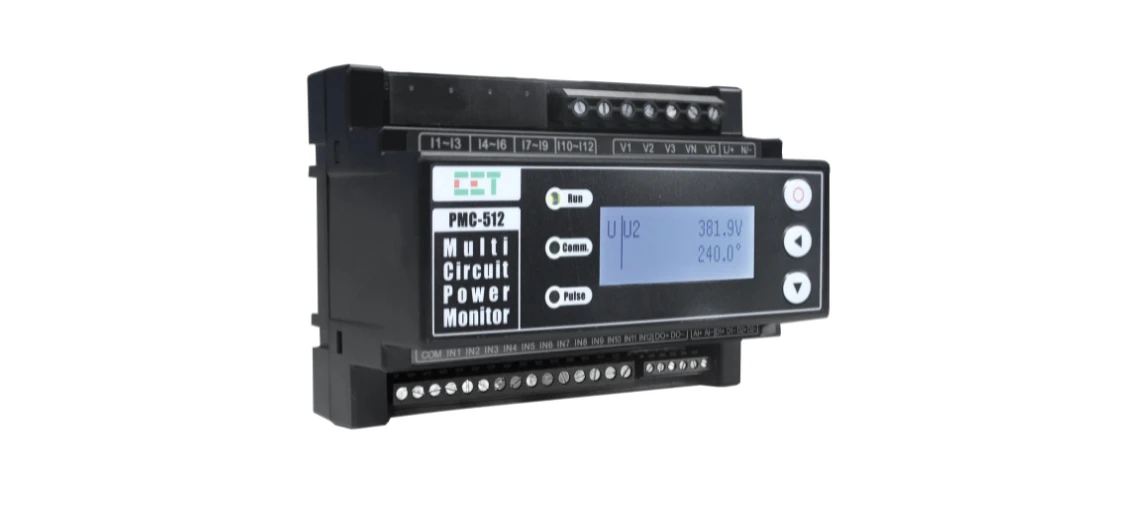

PMC-512-A is CET’s latest offer for the economical multi-circuit monitoring of Data Centers, Telecom Base Stations, Industrial & Commercial Buildings. Housed in a compact DIN Rail Mount enclosure, the PMC-512-A is perfectly suited for high-density metering applications. The PMC-512-A features quality construction with multifunction and Class 1 Energy Measurements. The PMC-512-A comes standard with a built-in LCD display, 12xDIs for status monitoring, 1xDO for control or alarming and 1xAI for temperature measurement or other analogue input applications. The standard SOE Log records all setup changes, alarms and DI/DO operations in 1ms resolution. With dual RS-485 as standard feature supporting Modbus RTU, the PMC-512-A can easily be deployed in a stand-alone system with an optional 7" touch-screen HMI that supports up to 32 devices over a RS-485 network, or simultaneously with a centralized monitoring and control system for an AC power distribution network.
- AC Multi-Circuit Power Monitor
- IEC 62053-21 Class 1
- 126x90x65 mm
- Backlit B&W LCD Display
- 12x1-Phase or 4x3 Phase Sub-Meters
- Harmonics, Demands, Data Log and Event Log
- Modbus RTU
- 2xRS-485
- 12xDI , 1xDO
CET PMC-512-A Multi-Circuit Monitor - Cost-Effective Energy Power Meter Solution Branch Consumption
