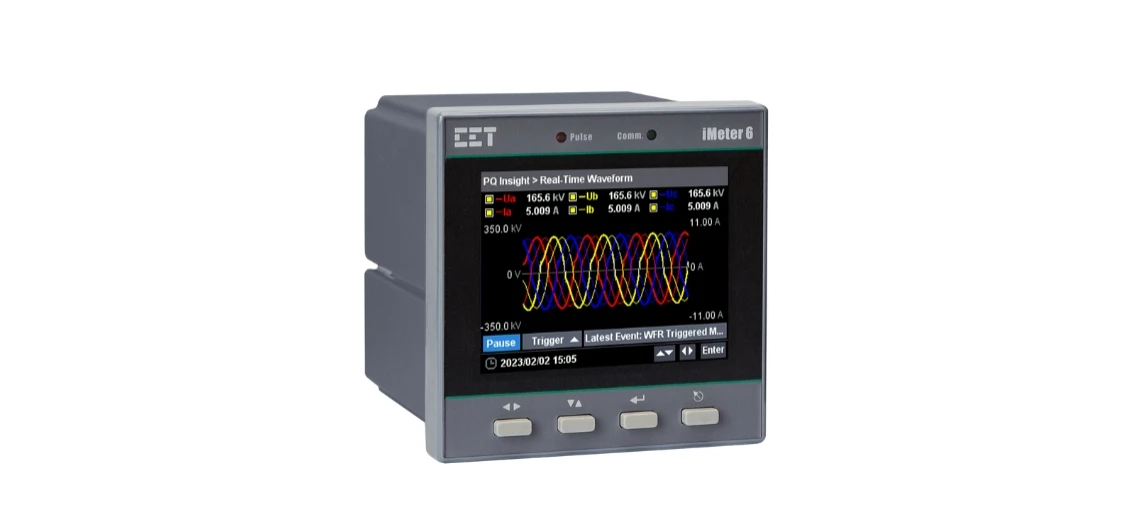

iMeter 6
iMeter 6 is CET’s latest offer for the advanced Power Quality Monitoring of Incomers and Critical Feeders for Utilities, Data Centers, High-Tech Manufacturing Facilities and Heavy Industries. Housed in an industry-standard DIN form factor measuring 96x96x119.5mm, the iMeter 6’s compact size is perfectly suited for today’s space restricting environment. The iMeter 6 features quality construction with metal enclosure, advanced Power Quality and Revenue-Accurate measurements, high-resolution Waveform Recording capabilities, comprehensive Data Logging with 2GB memory, extensive I/O and a user friendly, IPS Color Dot-Matrix Display @ 320x240. It also provides either an I4 Input for Neutral Current measurement or a 0/4-20mA Analog Input for measuring external transducer signal such as Residual or Leakage Current. With a standard 10/100BaseT Ethernet Port and an RS-485 port supporting multiple protocols, the iMeter 6 becomes a vital component of an intelligent Power Quality Monitoring System.
- Advanced Power Quality Monitor
- IEC 62053-22 Class 0.2S, IEC 61000-4-30 Ed.3 Class S Compliant
- DIN96 (92x92mm Cutout)
- Colour IPS Dot-Matrix Display
- Harmonics, Demands & TOU, PQ Log, Energy Log, Max/Min Log, Waveform Log and Event Log
- 2GB On-board Memory
- Modbus RTU, Modbus TCP, HTTPS, SNTP, SMTPS, FTPS, SNMP, BACnet/IP, Ethernet Gateway, IEC 61850
- 1xEthernet, 1xRS-485
- 6xDI, 3xDO, Optional 1xAI
